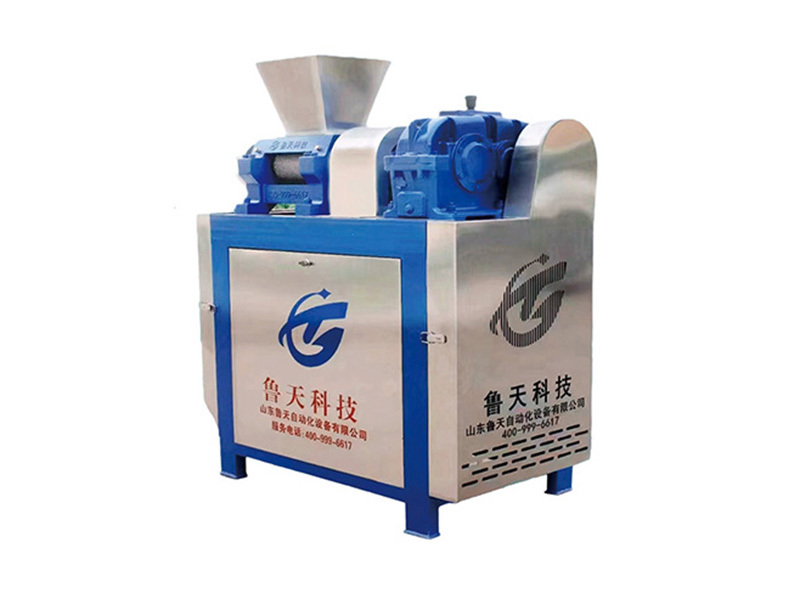

Double Roll Extrusion Granulator

DGZ series of roller extrusion machine granulation machine, using dry granulation process, room temperature granulation, high molding rate. Can produce φ3.2-φ6.0mm spherical, flat ball or irregular particles, one machine. It is widely used in granulation of powder materials in fertilizer, medicine, chemical industry and other industries; especially for ammonium sulfate, ammonium chloride, potassium sulfate, potassium chloride, binary and multiple compound fertilizer, salt and other granular fertilizers. Supporting the equipment with the relevant equipment. Single machine or multi-machine combination, can form 1-50 tons of continuity, mechanized production line.

The roller extrusion granulator is formed by using the extrusion pressure of two relatively rotating rollers. The half-ball pit model is evenly arranged on the surface of the two steel rolls, which is directly on the surface of the steel cylinder and cannot be replaced. The powder enters between the two rollers by the feeding port of the mixer. The two corresponding hemisphere molds on the roll are squeezed relatively after filling the material, and the two hemispheres form a flat spherical particle. The mold is generally less than the semicircle, otherwise it is not easy to die. After forming, the particles are thrown out of the mold due to the centrifugal force of the rotating roll, and fall to the outlet, and discharge through the outlet together with the unformed powder raw materials.

Product superiority

1. With power, high output, the output of coking grade ammonium sulfur can reach 1.3-1.5 tons per hour (145-220 extruder).

2. High accuracy, easy to debug, can achieve 100% of the mold overlap, and not easy to run holes, good stability.

3. The failure rate is low, the extruder material is good, and the contact point of fertilizer raw materials is stainless steel, which is not easy to corrode in use.

4. The service life of the roller is long, and the life of the roller is more than 800 tons!

5. The maintenance is simple and fast, and the quick demolition link method is used in many places.

6. It can produce multi-element compound fertilizer with full and round grains.
